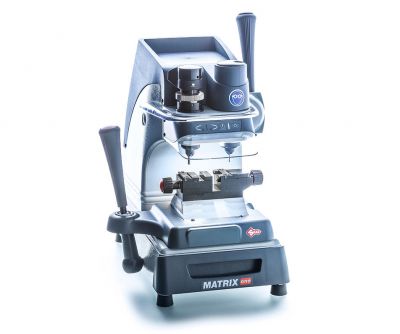

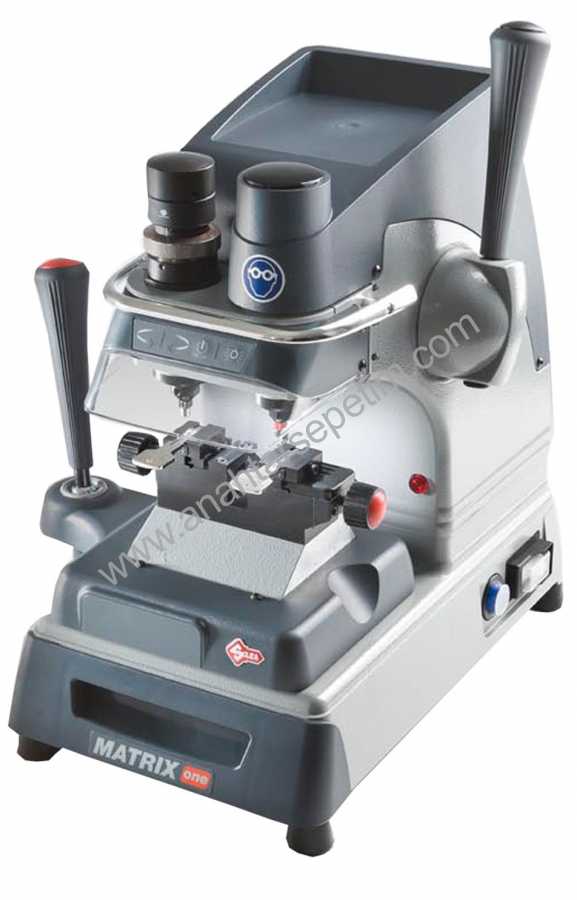

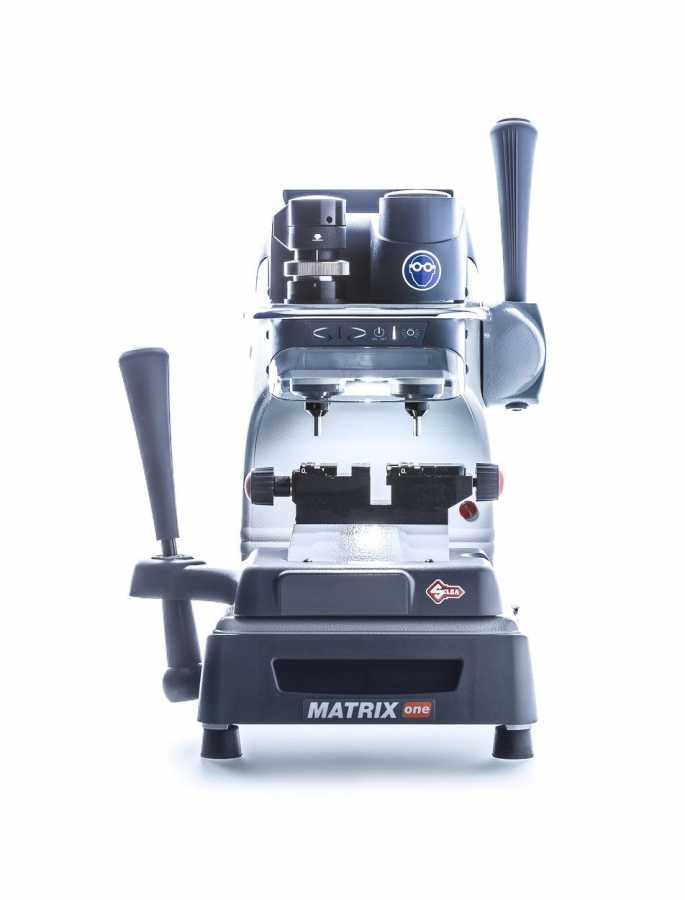

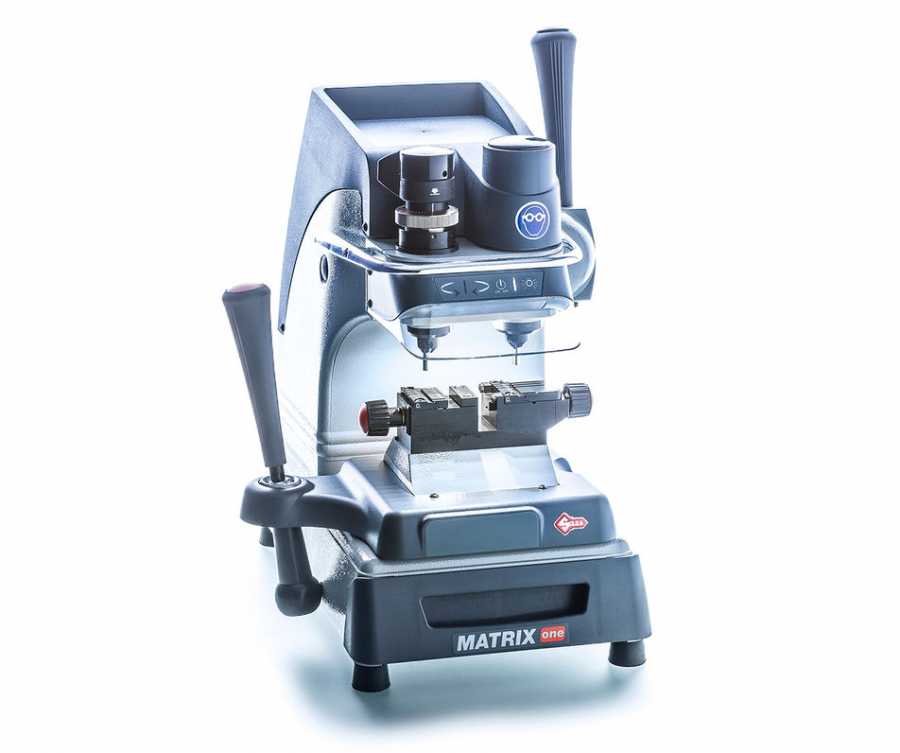

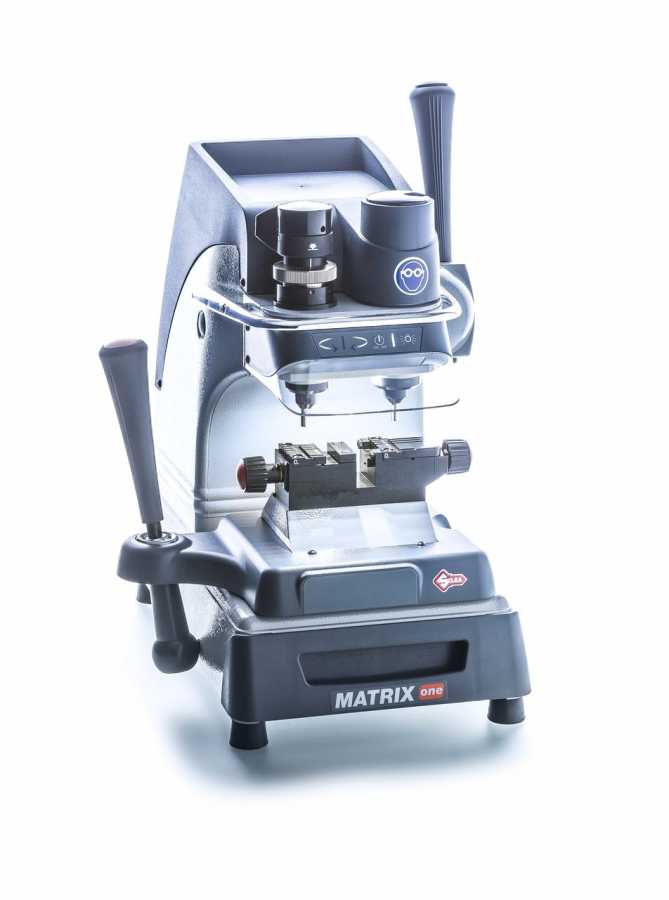

Silca Matrix One Key Cutting Machine D843298ZB

Stock Code: AKM.104


2,678.51 USD
Short Product Description

Matrix One is a key cutting machine providing good performances in duplicating keys with flat dimple and laser key cuts, very user-friendly, practical and efficient.

Campaign
  • Features
  • Silca Matrix One Laser and Dimple Mechanical Key Cutting Machines

    Matrix One is a key cutting machine providing good performances in duplicating keys with flat dimple and laser key cuts, very user-friendly, practical and efficient.

    Overview

    Matrix One represents a combination of smooth movements, ergonomic and comfortable working area, guaranteeing good performances thanks to its electromechanical gauging system. Narrow stem vehicle keys and Fichet® type keys can be duplicated with Silca’s specific optional adapters.

    Features

    • Ergonomic finishes and design, top quality materials.

    • Tolerances of hundredths in cutting results.

    • Ergonomic roll-bar and levers, led light, integrated tools and accessories compartments.

    • Optimized spring loaded tracer point with spring cam to facilitate operations. Micrometric gauge is used for tools alignment and also for adjusting small variations in depths, often necessary to copy worn keys.

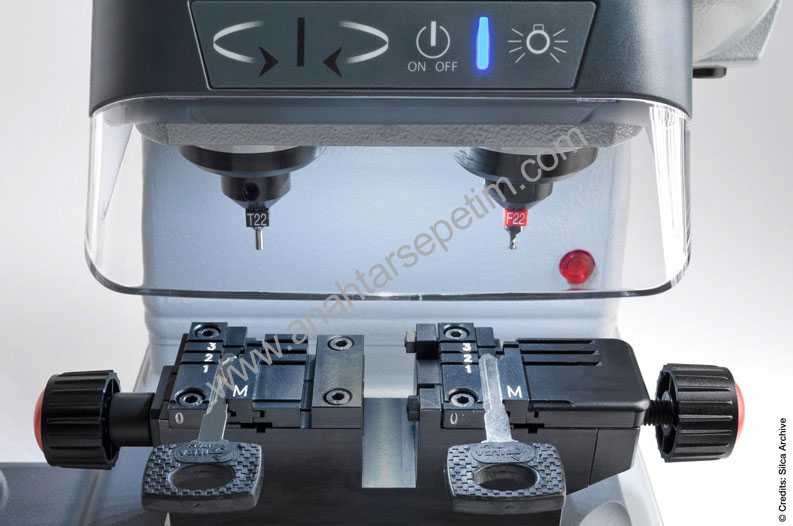

    • An innovative keypad display facilitates and speeds up the calibration operations. Electromechanical calibration system.

    • Roll-bar rest for the left hand provides the Operator with comfortable working conditions and excellent movements control. Optimized led lighting of the working area.

    • The lever controlling movements on the vertical axis (Z axis) has a push button to activate an incorporated micro-switch ensuring safety, speed and efficiency to the Operator. Wide safety shield designed in order to provide maximum protection for the Operator.

    • Easily-accessed accessories and keys area on top of the machine. Capacious pull-out tool-holder unit for accessories, incorporated on board into an ideal and easy-to-access position.

    Applications

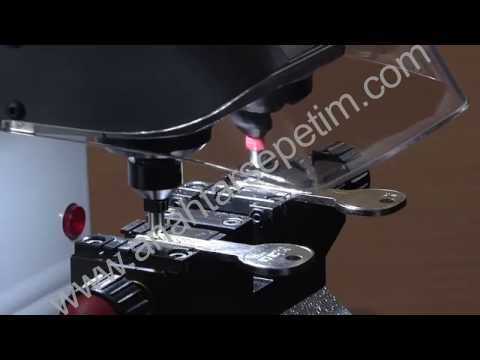

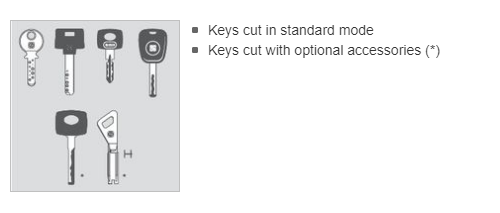

    Keys Cutting with Matrix One


    Technical Data

    Power supply: 230V - 50Hz: 0,75 Amp. – 170 Watt
    Cutter motor: Single phase 1 speed motor 230V 50/60 Hz
    Cutters: HSS (Super Rapid Steel)
    Movements: On 3 axes by ball guides
    Clamps: Fixed with interchangeable plates
    Runs: 40 mm (1.57“) X axis, 50 mm (1.97”) Y axis, 30 mm (1.18”) Z axis
    Illumination: Led light
    Dimensions: Width: 310 mm (12.20”) (with max. lever encumbrance: 400 mm – 15.75”), Depth: 400 mm (15.75”), Height: 470 mm (18.50”)
    Weight: 24,6 Kg (54.23 lbs)

    Part Number: D843298ZB

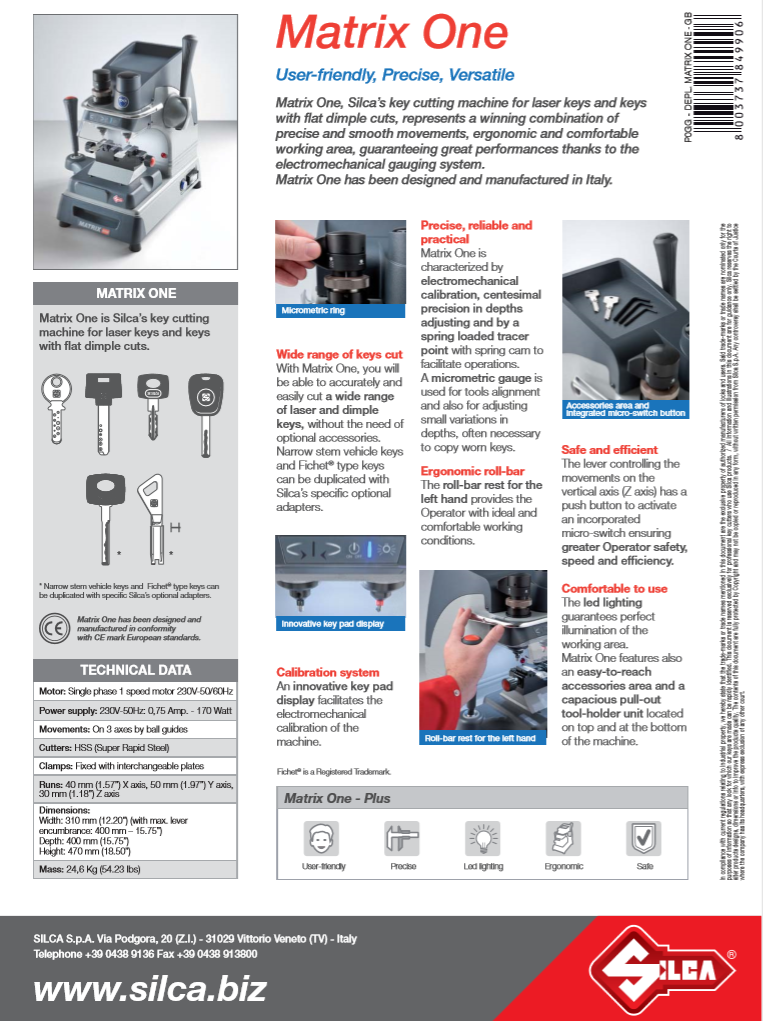

    Matrix One Brochure

    Matrix One Details
