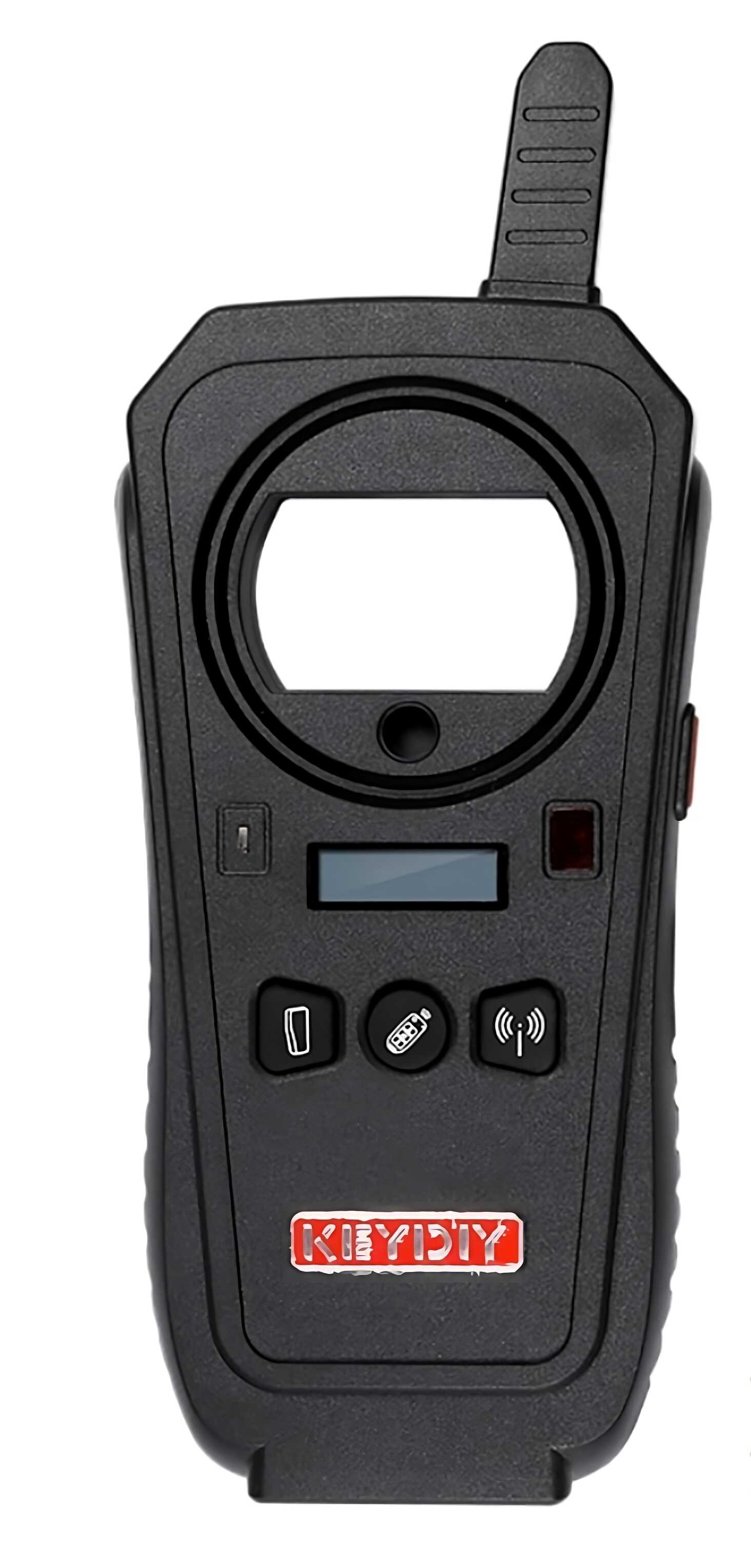

Keydiy KD-X2 Key Tool
The current coverage of the KEYDIY KD-X2 includes:
Transponder Identification
KEYDIY KD-X2 can read and identify the following transponder types:
- Fixed code ID 11, 12, 13, 33 and 4C
- Philips Crypto 40, 41, 42, 44, 45, 46, 47, 49 and 4A
- Megamos 48, 48 Canbus
- Texas Crypto 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 6A, 6B, 70, 71, 72, 82, 83, 8C and 8E
- Most smart keys
KEYDIY KD-X2 Transponder Cloning
The KDX2 offers an extensive cloning range with the built-in snoop for ID46 and ID48 cloning.
KEYDIY KD-X2 can clone keys for:
- 4D/ 4C / 46 / 11 / 12 / 13 / 33 transponder clone
- ID48 (96 Bit) Only
- Fixed code (T5) – ID 11, 12, 13 & 33 using a carbon T5 chip
- Texas TX 4C
- Texas Crypto TX/CR 4D
- Philips Crypto PH/CR 46
- Toyota 80 Bit
- Megamos Crypto

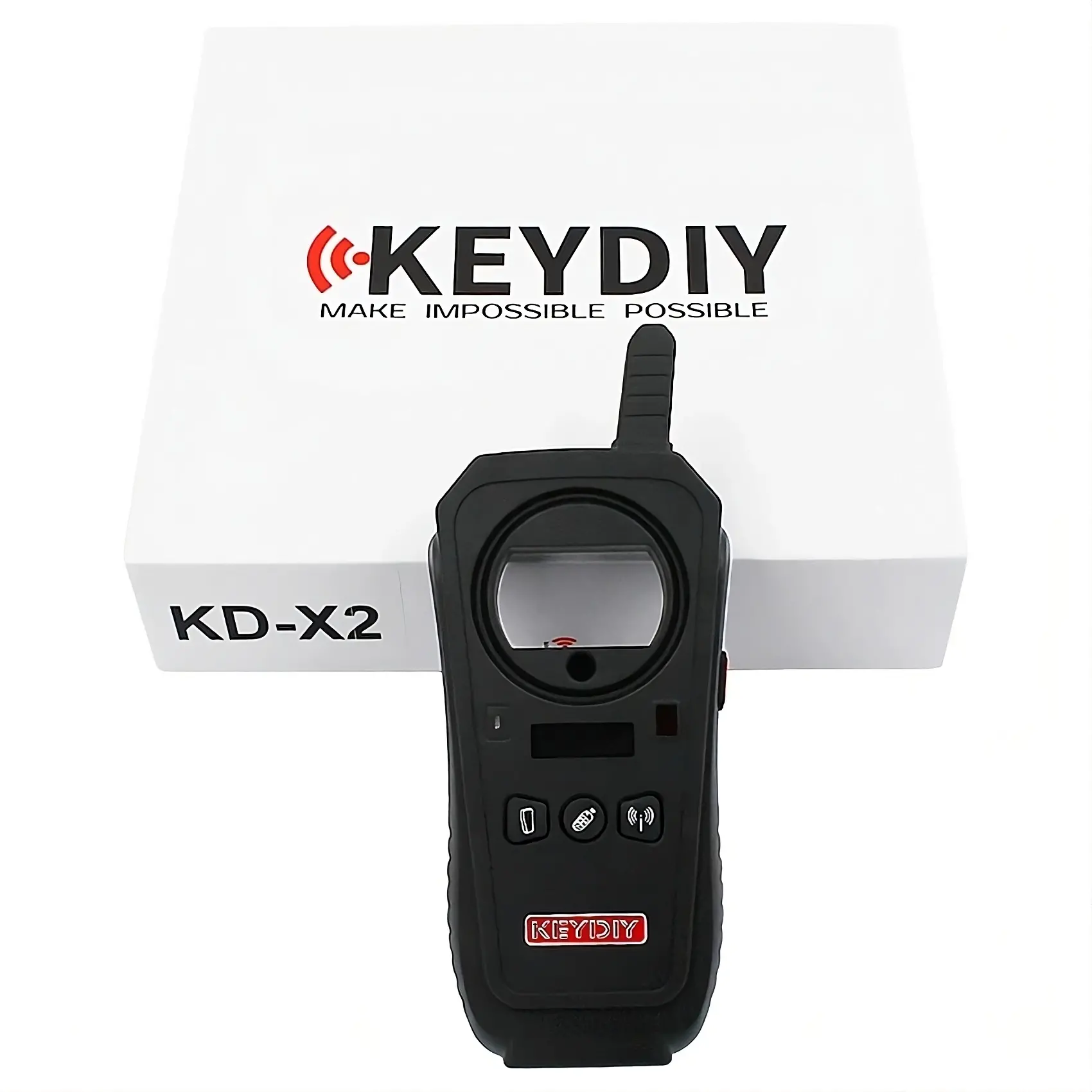

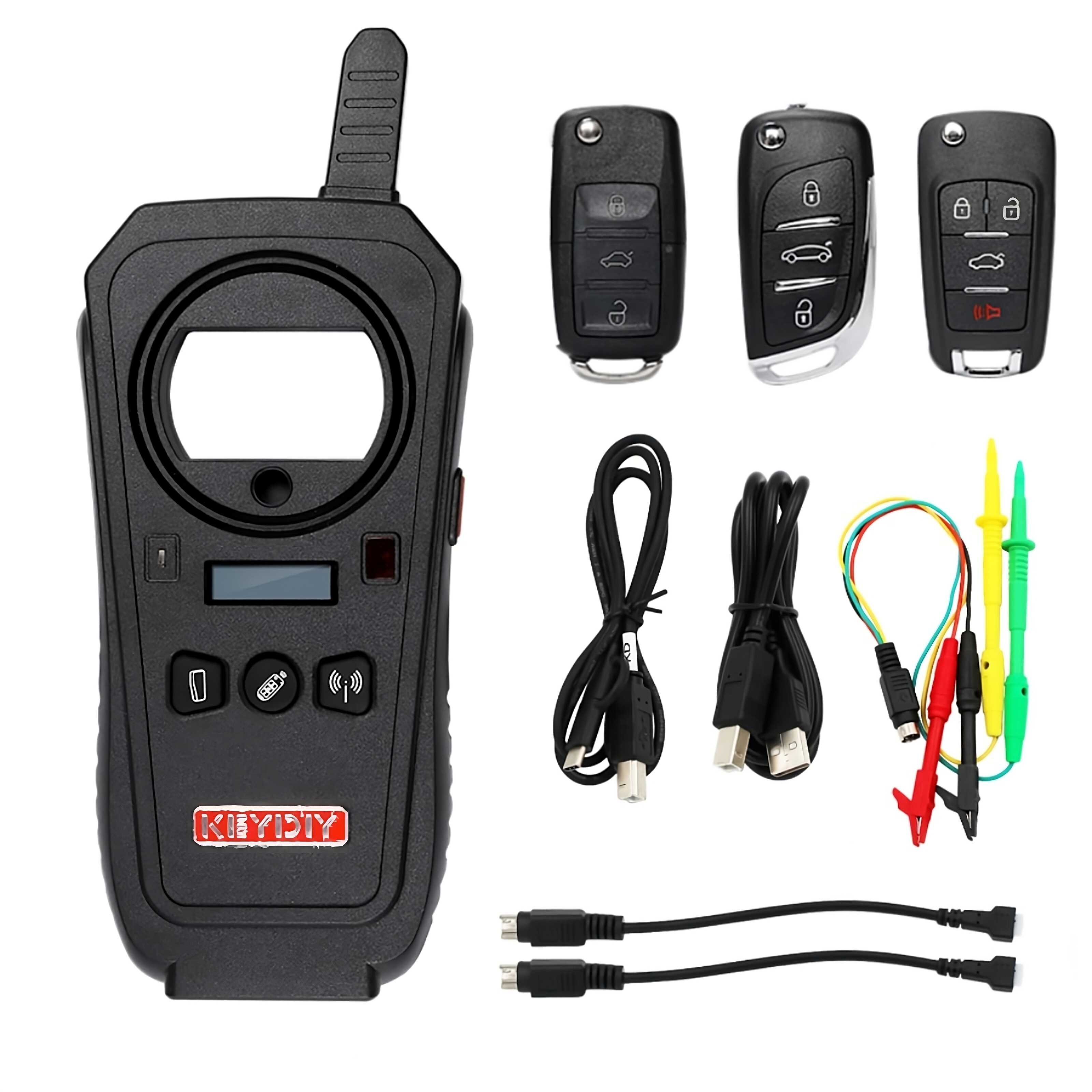

KEYDIY KD-X2 Package Content
- 1pc x KEYDIY KD-X2 Main Unit
- 1pc x PC Data Cable
- 1pc x 3 Commonly Remotes
- 1pc x Remote Data Cable
- 1pc x Spare Remote Data Cable
Click to access the user manual
You can find the list of all KEYDIY Remotes and Smart Switches here.
How to Update the KD-X2 Remote Maker:
- Power on the KD-X2 unit
- Download the Mobile KD App from the Google Play store
- Open the Mobile KD APP
- Select Bluetooth Setting -> Click to Search -> Pair to connect KD-X2 to Mobile Phone
- Check for new firmware updates
- New functions and improvements are released with firmware updates. Press OK to update the firmware
- Connect KD-X2 with a USB charger before initiating the update
- Click the 'Start Update' button
- Once the update is completed, wait for the automatic restart to finish the update in 9 seconds
